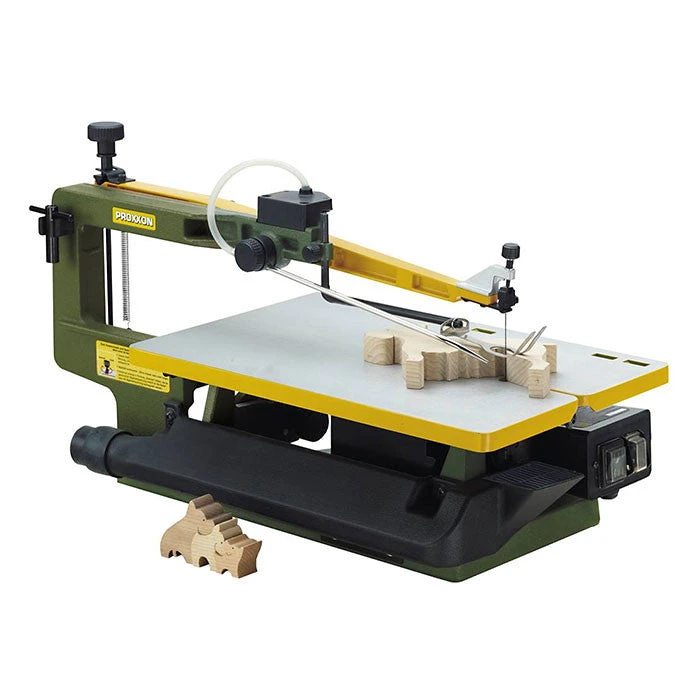

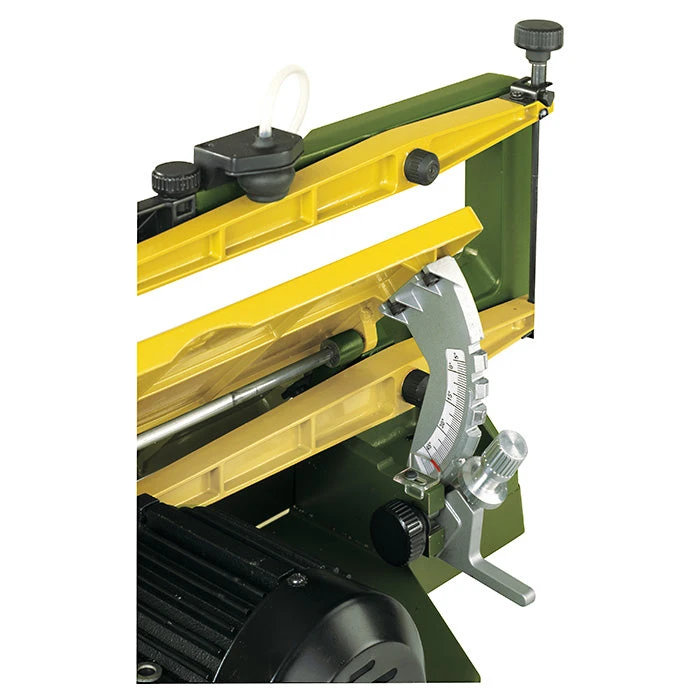

Sturdy construction: Vibration-reducing base housing of cast steel, neatly CNC-processed and powder-coated. For stability and working without vibrations. Magnesium saw arms precisely mounted on bearings: Extremely light and firm with a slender-shaped cutting area for an clear view of the work piece. Chip blowing device with adjustable nozzle. Additional suction connection to connect a vacuum cleaner. Large saw table made of die-cast aluminum 400 x 250mm (16″ x 10″). For easier saw blade replacement, it can be unlocked and pushed back. Regular scroll saw blades are fastened by saw blade holders with high clamping force: This ensures true alignment in the saw arm! The machine has also been prepared for saw blades with pin ends that are used without blade holders. Extremely important for these types of scroll saws: A handy adjusting knob enables sensitive clamping of the saw blades! Table angle adjustment possible from -5° to 50°. Cutting performance in wood 65mm (2 1/2″), in non-ferrous metals (depending on type) 10 – 15mm (3/8″ – 5/8″). Also easily cuts Plexiglas, glass fibre reinforced plastic, foam, rubber, leather or cork. Includes 5 each coarse and fine saw blades.
110 – 120V AC, 50/60Hz. 190W powerful brushess 2-speed motor. Speeds: 800 or 1,700 strokes/min. Stroke Length: 19mm (3/4″). Throat: 460mm (18 2/16″). Cutting Depth: 65mm (2 1/2″), 32mm (1 1/4″) at 45° angle. Overall Dimensions: L 580mm (22 7/8″), W 320mm (12 1/2″), H 300mm (12″). Weight: 20kg (44 lbs).
