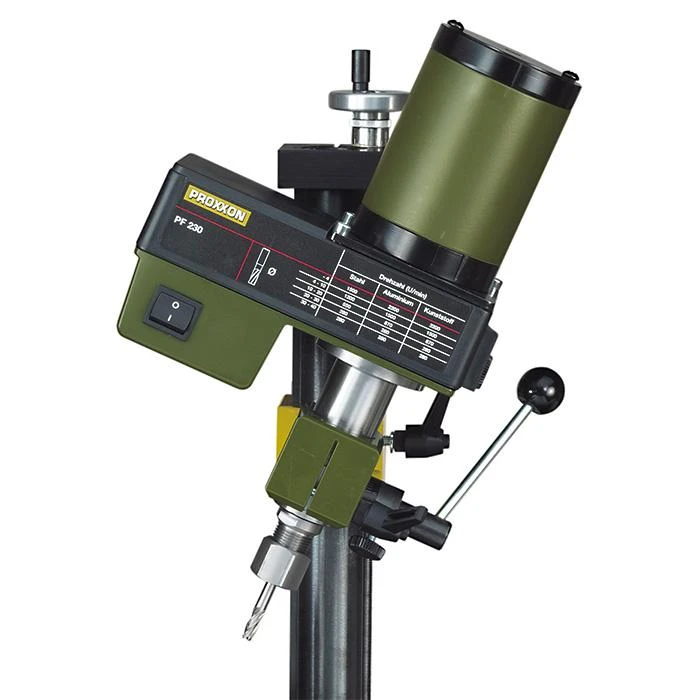

Proxxon – Mill/drill Head PF 230

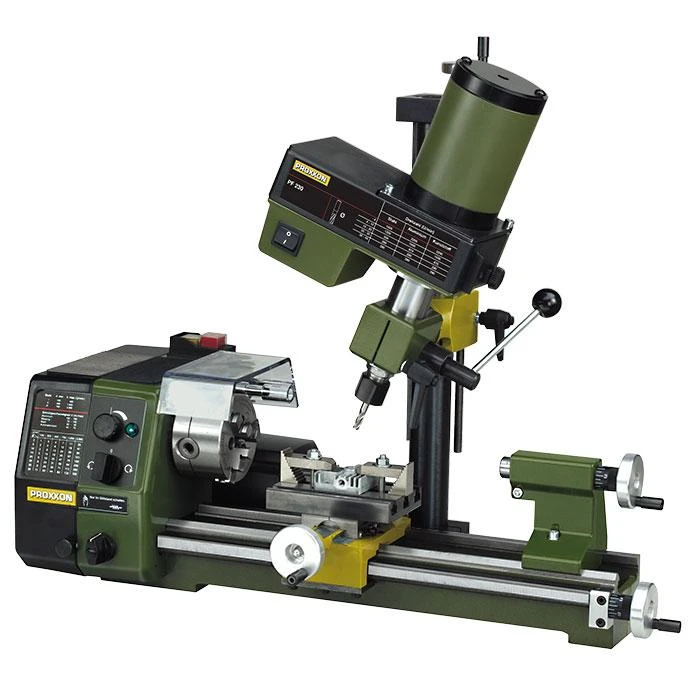

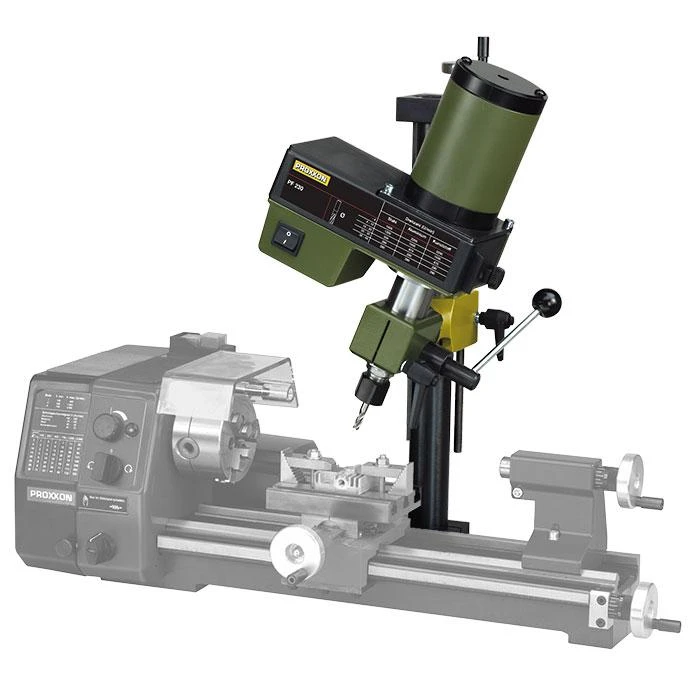

The Mill/Drill Head PF 230 converts your Lathe PD 250/E into a machining center. The Mill/Drill Head PF 230 comes with a column size 1 3/8″ x 15 3/4″ (35 x 400mm) including the necessary mounting bracket and bolts to attach it to the Lathe PD 250/E. The lathe’s top slide is then replaced with the table (supplied with the Mill/Drill Head PF 230). The table has a size of 4 5/16″ x 2 3/4″ (110 x 70mm) and 3-T slots 15/32″ x 15/64″ x 15/64″ (12 x 6 x 6mm). The lathe now functions as a compound table, with X-Y travel being longitudinal and cross-wise respectively. Three collets of sizes 15/64″ – 5/16″ and 25/64″ (6, 8, 10mm) are included. Technical data: 110 – 120V, 60Hz, 140W (0.1877hp), speeds 280 – 550 – 870 – 1,200 – 1,500 and 2,200rpm. Note: Lathe not included.
