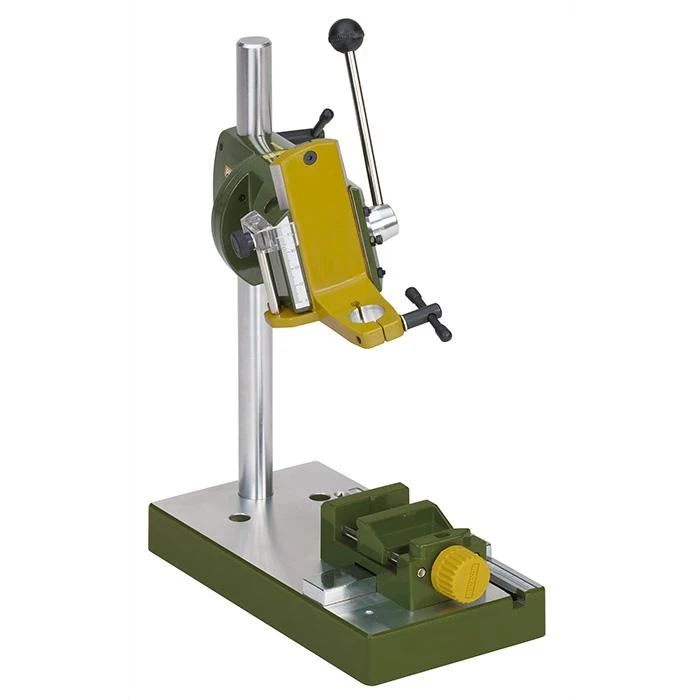

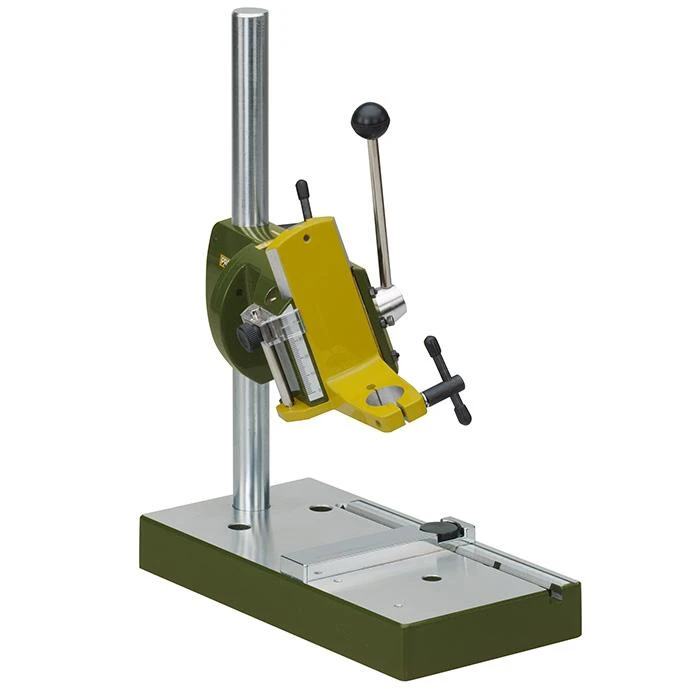

Proxxon – MICROMOT Drill Stand MB 200

Head with dovetail guides can be tilted through 90° (scale ring available). Enables beveled drilling and versatile milling operations. Geared rack and pinion feed with return spring allowing effortless and sensitive operation. Practical drill depth scale with adjustable limit stop (maximum travel 1 1/2″ (40mm)). With standard 4/5″ (20mm) collar for MICROMOT drilling and milling devices. With solid, hard chromium-plated steel column 11″ x 4/5″ (280 x 20mm), throat capacity (column inside to center of tool) 5 1/2″ (140mm). Plane-milled table 8 11/16″ x 4 3/4″ (220 x 120mm) with parallel limit stop and scale. Drilled, tapped holes for securing the MICRO compound table KT 70 and holes to fix the drill stand itself are also provided. Weight 2.2kg.
